Scotsman C 2148 MR Ice Maker 869kg Production With 553kg Storage Full Dice Cube

/
/
Scotsman C 2148 MR Ice Maker 869kg Production With 553kg Storage Full Dice Cube
Loading...

Scotsman C 2148 MR Ice Maker 869kg Production With 553kg Storage Full Dice Cube

Model Number: C 2148 MR On Bin UBH1100
Dimensions: 1220mm Wide x 1128mm Deep x 2164mm High

Scotsman


Scotsman C 2148 MR – 869kg Ice Maker – Modular Ice Maker on Storage Bin ubh 1100 Storage capacity 553kg
Model Number; C 2848 MR
Dimensions; W: 1219mm D: 610mm H: 737mm
Packed Weight: 168kg
Scotsman 10g cube
Product Features
  • 869kg daily production based on air temperature 21°c & water temperature 10°c
  • 697kg daily production based on air temperature 32°c & water temperature 21°c
  • W 22 x D 22 x H 22 mm, 10g ice cube
  • With Ice Storage Bin UBH 1100, Storage capacity: 553kg
  • Air cooled condensing unit
  • Agion Technology resists microbe’s growth and odours development to produce pure, clear and transparent ice cubes
  • Vertical evaporator spray-system technology
  • Easy access front condenser air filter
  • One touch button for easy cleaning
  • Water sense adaptive purge control for better water usual control
  • Simple, reliable electromechanic control
  • Resistant stainless steel exterior
  • External indicator lights to show operation status and maintenance
  • Requires Storage bin model NB 948, CBT 48 EAMCD (Required cover when used NB 948), UBH 1100
  • Removable air filter
  • Optional extra:
  • ECR 611 – Remote condensor W 750mm x D 740
  • RTE 40 – Pre-Charge tube lines R404A 12m length

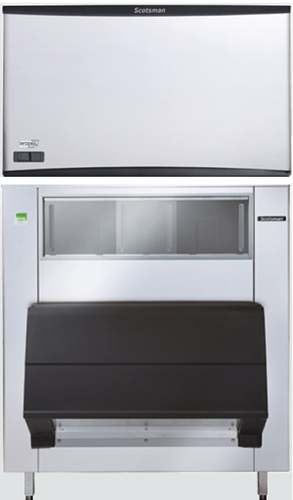

  • *Image shown ice maker with optional storage bin
Scotsman UBH 1100 – 553kg – Upright Storage Bin
Model Number; UBH 1100
Dimensions; W: 1220mm D: 1128mm H: 1427mm
Packed Weight: 164kg
Product Features:
  • Storage Bins Only
  • 553kg maximum ice Storage capacity
  • Upright front bins
  • Pre-cut top pane to accommodate multiple head units
  • High density polyethylene insulation
  • Easy clean with removable gaskets
  • Convenient multi-positioned ice deflector, preventing ice spills
  • Stainless steel bin exterior with front window view
  • Ice chute cut-out require upon installation
  • Single spring loaded bin door for safe usage and tight seal of storage compartment
  • Includes ice paddle, water & drain hose
Note: *For Warranty Compliance the water filter is to be replaced 6 monthly *For prolonged life a service is recommended 6 monthly
*Ice Production is calculated on air temperature 21ºC & water temperature 10ºC
Specification Sheet
Bin Specification
