Scotsman MF 56 AS OX Ice Flaker 590kg production with 406kg storage capacity

Model Number: MF 56 AS OX On Bin NB 948 with CBT48 Cover
Dimensions: 1235mm Wide x 868mm Deep x 1954mm High

Scotsman



Scotsman MF 56 AS OX – 590kg – Modular Flake Ice Maker
Model Number
MF 56 AS OX
Dimensions
W: 538mm D: 663mm H: 785mm Packed Weight: 103kg
Product Features
  • Head only Ice maker
  • 590kg daily production based on air temperature 21°c & water temperature 10°c
  • 520kg daily production based on air temperature 32°c & water temperature 21°c
  • Residual water content 15%
  • Air cooled condensing unit
  • Agion Technology resists microbe’s growth and odours development to produce pure, clear and transparent ice cubes
  • R452a refrigerant gas
  • XSafe – Natural Sanitation System
  • Stainless steel auger and freezing cylinder (evaporator)
  • Hermetic compressor
  • Double protection – electronic rotation sensor & drive coupling
  • Low-water sensor protection
  • Simple, reliable electromechanic control
  • Stainless steel finish, top cover in PS plastic with removable panels
  • External indicator lights to show operation status and maintenance
  • Requires storage bin model NB 393, NB 530, CBT 30 EFSD (required cover when used with NB 393/ NB 530), NB 948, CBT 48 FMCD (required cover when used with NB 948), UBH 1100
  • Removable air filter
  • Includes water & drain hose

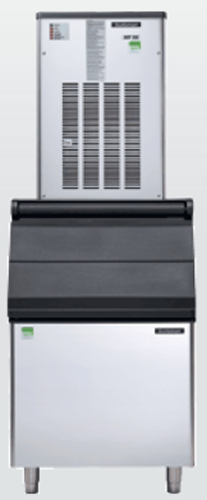

  • *Image shown Ice maker with optional storage bin
Scotsman NB 948 – 406kg – Ice Storage Bin
Model Number; NB 948
Dimensions; W: 1237mm D: 868mm H: 1269mm Packed Weight: 97.4kg
Product Features
  • Storage bins only
  • 406kg maximum Ice storage capacity
  • Slope front bins
  • High density polyethylene insulation
  • Easy clean with removable gaskets
  • Convenient built-in scoop holder
  • Stainless steel bin exterior with rotocast plastic hinged door
  • Requires storage bin top covers CBT 48 EAMCD (required cover for MXG 638, NW 608, NW 1008, NW 1408 when used with NB 948 storage bin), CBT 48 FMCD (required cover for MF 36, MF 47, MF 57, MF 59, MF 69, MFN 46 And MFN 56 when used with NB 948 storage bins)
  • Includes Ice scoop, water & drain hose
notes: • All models supplied standard as air cooled (A), can be supplied as water cooled (W) on request only. • Please note production of ice is measured with an ambient temperature of 21°C and water temperature of 15°C. Production may fluctuate based on both ambient and water temperatures. • Water filters are recommended – see terms & conditions part 14.
Note: *For Warranty Compliance the water filter is to be replaced 6 monthly *For prolonged life a service is recommended 6 monthly
*Ice Production is calculated on air temperature 21ºC & water temperature 10ºC
Specification Download
Bin Specification
