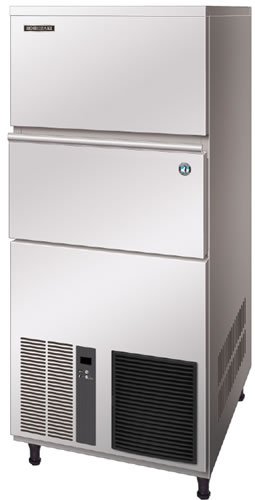

This ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavor of the drink. This model is configured with our storage bins, and can be stacked to multiply the ice production.
Features:
New intelligent control circuit dedicated to saving power and water consumption.
Micro computer controller controls ice making process to work at peak performance in any condition
Cube Size; 28mm x 28mm x 32mm
Production Capacity per 24hours:
Approx. 220kg @ 10°C Air temp; 10°C Water
Approx. 205kg @ 21°C Air temp; 15°C Water
Approx. 160kg @ 32°C Air temp; 21°C Water
Max Storage Capacity Approx. 110kg
Freeze Cycle Time Approx. 20 Min
Ice Production Per cycle Approx. 3.2kg/140pcs
AC Supply Voltage 1 PHASE 220-240V 50Hz / 10 AMP Plug
Amperage Running: 6.6A Rated: 6.6A Starting: 35A
Operating Conditions:
    Ambient Temp.: 1-40°C
    Water Supply Temp.: 5-35°C
    Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
   Voltage Range: Rated Voltage ±6%
Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
New 7 segment operational display panel for ease of use.
Unique closed cell water circuit for ultimate contamination protection.
Durable stainless steel exterior.
Easily accessible and cleanable air filters reduce costly callouts.
Exceptionally hard crystal clear cubes that melt slowly.
Auto rinse and flush cycle.
KM / KMD / IM – 3 years Parts and Labour on the entire unit. 5 years (parts and labour) on evaporator. 5 years (parts only) compressor and air cooled condenser coil.
      Note: *For Warranty Compliance the water filter is to be replaced 6 monthly
*For prolonged life a service is recommended 6 monthly
