Scotsman MXG M 437 AS OX Gourmet Ice Cube Maker 165kg Production on Storage Bin 530

/
/
Scotsman MXG M 437 AS OX Gourmet Ice Cube Maker 165kg Production on Storage Bin 530
Loading...

Scotsman MXG M 437 AS OX Gourmet Ice Cube Maker 165kg Production on Storage Bin 530

Model Number: MXG M 437 AS on bin NB530
Dimensions: 773mm Wide x 843mm Deep x 1762mm High

Scotsman

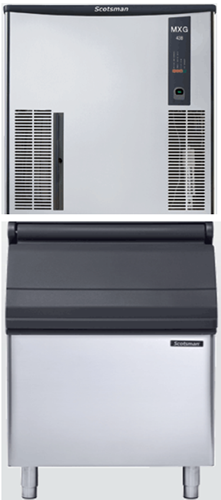

Scotsman MXG M 437 AS OX – 165kg – EcoX & XSafe Modular Gourment Ice Maker
on Bin NB 530, Storage capacity 243kg
Packed Weight: 85kg Scotsman 310kg High Production Gourmet Ice Cube Maker Head With 243kg Storage
Product Features
  • Head only Ice maker
  • 165kg daily production based on air temperature 21°c & water temperature 10°c
  • 135kg daily production based on air temperature 32°c & water temperature 21°c
  • 30mm dia x H 34mm, 20g ice cubes
  • Air cooled version
  • Agion Technology resists microbe’s growth and odours development to produce pure, clear and transparent ice cubes
  • EcoX hydrocarbons R290 refrigerant gas
  • XSafe – Natural Sanitation System
  • Horizontal Ice evaporator spray-system technology
  • Simple, reliable electromechanic controls
  • Clean alert indicator to clean filter
  • Easy access front condenser air filter for easy clean
  • Resistant stainless steel exterior
  • External indicator lights to show operation status
  • Requires storage bin model NB 393, NB 530
  • Includes removable air filter, water & drain hose
Scotsman NB 530 – 243kg – Ice Storage Bin
Model Number
NB 530
Dimensions
W: 770mm D: 843mm H: 1268mm Packed Weight: 77.4kg
Product Features
  • Storage bins only
  • 243kg maximum Ice storage capacity
  • Slope front bins
  • High density polyethylene insulation
  • Easy clean with removable gaskets
  • Convenient built-in scoop holder
  • Stainless steel bin exterior with rotocast plastic hinged door
  • Requires storage bin top covers CBT 30 52 AMCD (required cover for NW 307. NW 507 and NW 508 when used with NB 530 storage bins), CBT 30 EFSD (required cover for MF 36), CBT 30 EFCD (required cover for MF 46, MF 56, MFN 56, MFN 46)
  • Includes Ice scoop, water & drain hose
• 2 years manufacturer warranty
Note: *For Warranty Compliance the water filter is to be replaced 6 monthly *For prolonged life a service is recommended 6 monthly
Specification Sheet
Bin Specification
