Scotsman NW 608 AS OX Ice Maker 290kg Production With 178kg Storage Full Dice Cube

/
/
Scotsman NW 608 AS OX Ice Maker 290kg Production With 178kg Storage Full Dice Cube
Loading...

Scotsman NW 608 AS OX Ice Maker 290kg Production With 178kg Storage Full Dice Cube

Model Number: NW 608 AS OX On Bin NB393
Dimensions: 760mm Wide x 843mm Deep x 1612mm High

Scotsman

Scotsman NW 608 AS OX – 290kg – XSafe Modular Ice Dice Ice Maker
Model Number
NW 608 AS OX
Dimensions
W: 760mm D: 620mm H: 575mm Packed Weight: 88kg
Scotsman 10g cube
Product Features
  • Head only Ice maker
  • 290kg daily production based on air temperature 21°c & water temperature 10°c
  • 230kg daily production based on air temperature 32°c & water temperature 21°c
  • W 22mm x D 22mm x H 22mm, 10g ice cubes
  • Air cooled version
  • Agion Technology resists microbe’s growth and odours development to produce pure, clear and transparent ice cubes
  • R404a refrigerant gas
  • XSafe – Natural Sanitation System
  • Vertical evaporator spray-system technology
  • Top air discharge – suitable for narrown space installation
  • Front evaporator access for easy servicing
  • One touch button for easy cleaning
  • T304 grade stainless steel exterior
  • Auto-alert indicator lights to show operation status and maintenance
  • Requires storage bin model NB 393, NB 530, NB 948 with CBT 48 EAMCD cover (required cover when used NB 948)
  • Includes removable air filter, water & drain hose
  • Optional extras: KSC 450 – stacking kit for NW 457/ NW 608

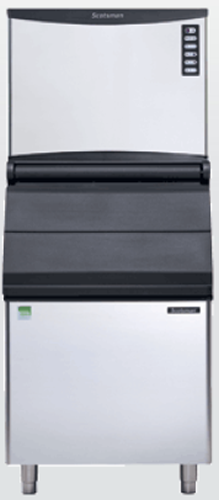

  • *Image shown Ice maker with optional storage bin
Scotsman NB 393 – 178kg – Slope Front Storage Bin
Model Number
NB 393
Dimensions
W: 768mm D: 843mm H: 1039mm Packed Weight: 64.2kg
Product Features:
  • Storage Bins Only
  • 178kg maximum ice Storage capacity
  • Slope front bins
  • High density polyethylene insulation
  • Easy clean with removable gaskets
  • Convenient built-in scoop holder
  • Stainless steel bin exterior with rotocast plastic hinged door
  • Requires storage bin top covers CBT 30 EMCD (Required cover for NW308, NW508, NW 458 when used with NB393 and NB530), CBT 30 EFSD (Required cover for MF26, MF36, M 46, MF47, MF56, MF58, MF59, MFN46 and MFN56 when used with NB393)
  • Includes ice scoop, water & drain hose
Note: *For Warranty Compliance the water filter is to be replaced 6 monthly *For prolonged life a service is recommended 6 monthly
*Ice Production is calculated on air temperature 21ºC & water temperature 10ºC
Specification Download
Bin Specification
